Module 8: Display

Display On The Y-Board

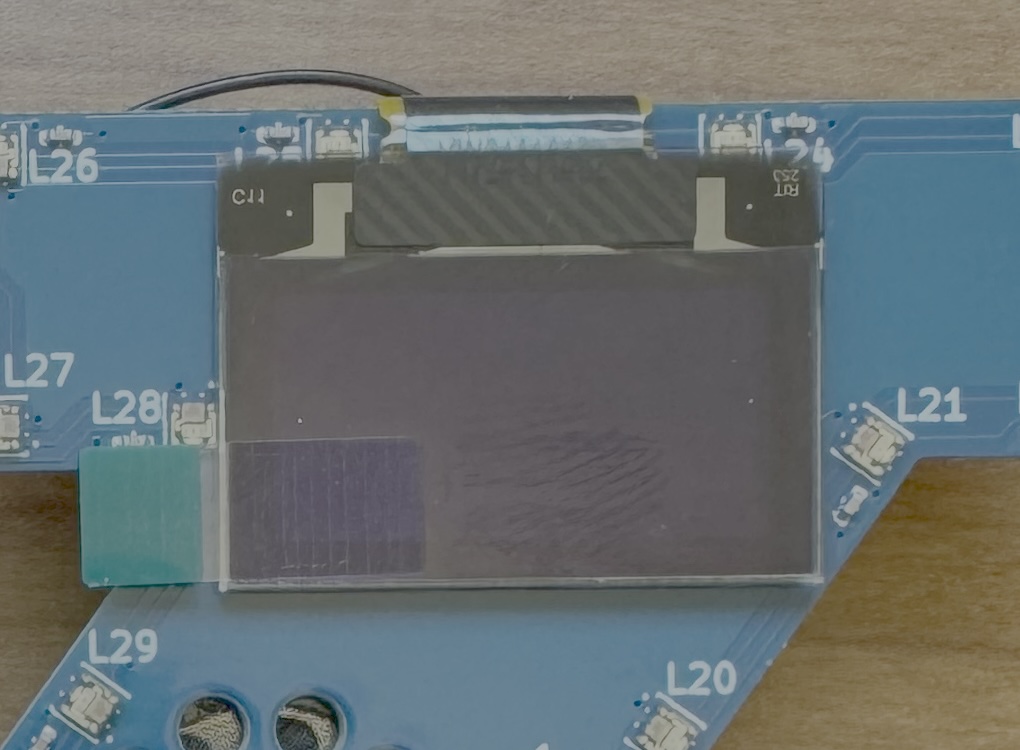

Y-Board has a single color display that is 128 pixels wide and 64 pixels long. You can use it to display text, shapes, and other graphics. The display is controlled by the Yboard object, which provides functions to draw on the display.

Functions

Interacting with the display is slightly different from the other modules. Since there are so many functions associated with the display, we decided to have you access the display object directly, rather than through functions the Y-Board provides. The display object is called display, and it has the following functions:

  • Yboard.display.display(): This must be called to update the display after making changes. It refreshes the display with the current content. If you do not call this function, you will not see any changes on the display!
  • Yboard.display.clearDisplay(): Clears the display.
  • Yboard.display.setCursor(x, y): Sets the cursor position to the specified coordinates (x, y), where x is the horizontal position and y is the vertical position. The top-left corner is (0, 0), and the bottom-right corner is (127, 63).
  • Yboard.display.println(<string>): Prints the specified string at the current cursor position.
  • Yboard.display.drawLine(x1, y1, x2, y2, color): Draws a line from the point (x1, y1) to the point (x2, y2) with the specified color.
  • Yboard.display.drawRect(x, y, width, height, color): Draws a rectangle with the top-left corner at (x, y), with the specified width and height and color.
  • Yboard.display.fillRect(x, y, width, height, color): Fills a rectangle with the top-left corner at (x, y), with the specified width and height and color.
  • Yboard.display.drawCircle(x, y, radius, color): Draws a circle with the center at (x, y) and the specified radius and color.
  • Yboard.display.fillCircle(x, y, radius, color): Fills a circle with the center at (x, y) and the specified radius and color.

Since the display is monochrome, the color parameter can be either WHITE or BLACK. The WHITE color will draw or fill the shape with white, and the BLACK color will draw or fill the shape with black (which effectively erases it).

Examples

Write some text on the display:

// Clear the display
Yboard.display.clearDisplay();
// Set the cursor to the center of the display
Yboard.display.setCursor(28, 28);
// Print "Hello, World!" at the center of the display
Yboard.display.println("Hello, World!");
// Display the changes
Yboard.display.display();

Draw some shapes on the display:

// Clear the display
Yboard.display.clearDisplay();
// Draw a rectangle around the edges of the display
Yboard.display.drawRect(5, 5, 118, 54, WHITE);
// Draw a circle in the center of the display
Yboard.display.fillCircle(64, 32, 20, WHITE);
// Display the changes
Yboard.display.display();

Exploration

  1. Write a program that displays your name on the display, centered vertically and horizontally.
  2. When a button is pressed, display a message on the display that says “Button Pressed!” and then clear the display after 2 seconds.

Challenges

Challenge 1: Write a program that displays the state of all the buttons and switches on the display.
